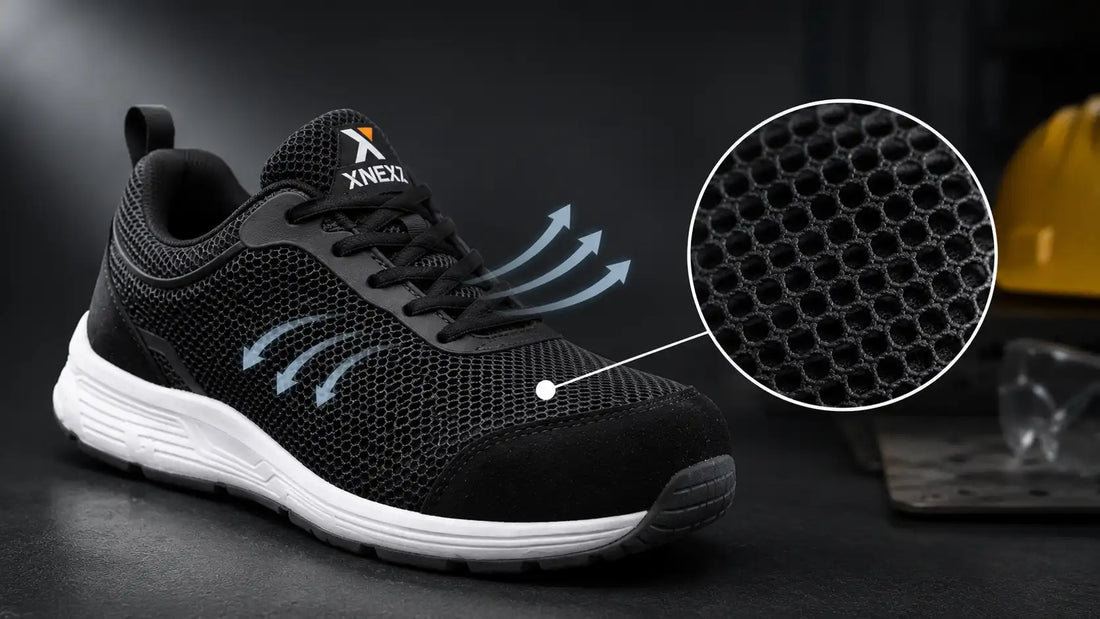

A mesh upper is the main outer material of a safety shoe made from a woven or knitted synthetic textile, usually polyester, chosen for airflow and low weight rather than for outright toughness.
It's why trainer-style safety shoes feel noticeably cooler and lighter than traditional leather boots over a long shift. Mesh is rarely used entirely on its own, most safety shoes pair it with a firmer material, like microfibre or leather overlays, in the areas that take the most wear.
Upper, Lining and Overlay: What's the Difference?
These three terms describe different layers of the same part of the shoe:
Upper
Lining & Overlay
A single shoe often combines all three: a mesh upper for the main panels, a softer mesh lining against the foot, and a leather or microfibre overlay stitched over the toe and heel for extra reinforcement. When a spec sheet says "mesh and microfibre upper," it's usually describing this kind of combination, not one uniform material across the whole shoe.
What Is Mesh, and How Is It Made?
Mesh is a woven or knitted textile, most commonly polyester, constructed with small open gaps between the fibres that let air pass through. That open structure is what makes it breathable and light, but it also means raw mesh has very little structure on its own.
To make it usable on a shoe, mesh is almost always bonded to a backing layer, a process called laminating, which gives it enough body to hold its shape and be stitched. Some panels use a further coating, often a polyurethane coating (sometimes shown on technical files as KPU), which adds a bit more structure and a small amount of water and abrasion resistance to that specific panel, without turning the whole upper into a waterproof material.
Typical Mesh Upper
Typical Leather Upper
Does a Mesh Upper Affect Certification?
Not directly. EN ISO 20345 certifies the complete shoe, the toe cap, midsole, heel energy absorption, and anti-static properties, not the upper material by name. A "mesh upper" is a construction description, not a certification claim on its own.
What actually needs checking separately
Water resistance for the upper (WRU, sometimes tested as part of WPA, water penetration and absorption resistance) and cut resistance for the upper (CR) are optional, separately tested markings under EN ISO 20345:2022+A1:2024. Mesh generally offers lower inherent water and cut resistance than leather, but that's a general tendency, not a certified fact for any specific shoe unless the label confirms it.
The reverse also holds: not every leather upper is automatically water-resistant or cut-resistant either, that depends on the specific leather treatment and the shoe's actual tested markings, not the material name alone.
Mesh vs Leather: Complete Comparison
The ratings below are an editorial, practical comparison based on typical material behaviour, not laboratory test results for any specific product. Actual performance always depends on the exact construction, coating, and certified testing.
| Factor | Mesh Upper | Leather Upper | Assessment |
|---|---|---|---|
| Material | Woven or knitted polyester | Full-grain or split leather | Different, not comparable |
| Weight | Generally lighter | Generally heavier | Mesh lighter |
| Breathability | Excellent | Moderate | Mesh cooler |
| Break-in period | Typically minimal | Often noticeable | Mesh quicker to wear |
| Water resistance | Compound-dependent, generally lower | Compound-dependent, can be higher if treated | Leather tends higher |
| Cut & abrasion resistance | Moderate, lower unless reinforced | Good to excellent | Leather tougher |
| WRU / CR marking | Check separately, not automatic | Check separately, not automatic | Tie — check the label |
| Cleaning | Usually easier, quick to dry | Needs more careful cleaning | Mesh easier care |
| General tendency, best suited to | Warm or indoor environments, long shifts | Environments needing more scuff resistance | Verify via certification |
"Assessment" reflects general material tendencies for editorial comparison purposes. It is not a certified test result and should not replace checking the actual WRU/CR markings and technical file for a specific shoe.
Who Should Choose Which Upper?
A Mesh Upper May Suit You If…
- You're on your feet for long shifts in a warm or indoor environment
- Breathability and low weight matter more than scuff resistance
- You want a shoe that needs little to no breaking in
- Your workplace doesn't specifically require a water- or cut-resistant upper
A Leather Upper May Suit You If…
- Your role involves regular scuffing, abrasion, or rough contact
- Confirmed WRU or CR performance matters specifically to your job
- You want an upper built to resist wear over a long service life
- Your risk assessment or PPE policy specifies a tougher upper construction
Either way, your employer's PPE policy and risk assessment decide what's actually required, whatever material sits on top of your foot.
Signs Your Upper Needs Replacing
There's no single date that applies to every shoe, wear depends on your role, environment, and care. Watch for these signs instead:
- Fraying or visible holes in the mesh panels
- Seams pulling apart, especially around the toe or eyelets
- The mesh separating from its backing layer, a soft, bubbled feel
- Persistent odour that cleaning no longer resolves, a sign moisture is trapped inside the structure
- Loss of support around the eyelets, laces no longer holding the shoe snug
- Visible chemical staining or discolouration
Xnexz's own technical documentation also notes that unworn stock has an estimated shelf life of around 3 years when stored in appropriate conditions, and recommends a visual check before wear regardless of age, scrapping the shoe if there's any abrasion, cut, or tear. That guidance applies to storage as much as to shoes already being worn.
Neither mesh nor leather is the "correct" upper, they suit different days. Mesh tends to work well for warm, indoor, long-shift environments, lighter and cooler, with the honest trade-off that it generally offers less inherent water and cut resistance than leather.
Leather tends to hold up better against scuffing and abrasion, and can offer stronger water resistance if properly treated, at the cost of extra weight and a longer break-in period.
Most safety shoes don't force a binary choice, mesh-and-overlay constructions exist precisely to combine both. Whatever the upper, check the certification label for the WRU and CR markings that actually matter to your job, and let your employer's PPE policy make the final call.
Where Xnexz Fits In: The Upper Construction on PulseX and StrideX
Both PulseX and StrideX use a combination upper rather than a single uniform material. Their EU-type examination certificates list mesh (in some panels laminated with a polyurethane coating for extra structure), a fabric-backed and microfibre component, and a suede leather overlay used together across the two models, alongside a mesh lining in the tongue, gusset, quarter, and heel areas. The exact panel-by-panel split differs slightly between the two certificates, so we're describing the general construction honestly rather than claiming an identical, uniform "mesh and microfibre" upper for both.
This is paired with a 200J aluminium toe cap, a non-metallic (PL) puncture-resistant insert, and EN ISO 20345:2022+A1:2024 certification, category S1PL FO SR, commonly shortened to S1P.
StrideX and PulseX are built for suitable light-duty and controlled work environments where this certification class is accepted. We don't market either shoe as waterproof or cut-resistant, and the upper material itself doesn't carry a separately tested WRU or CR marking. If your role needs confirmed water or cut resistance, your employer's PPE policy and risk assessment should confirm exactly what's required, ask your safety officer if you're unsure.
We're a new UK brand, and we'd rather describe the upper construction accurately than round it up to a single tidy material. If you wear either shoe, we'd genuinely welcome your honest feedback on how the upper holds up on your floor.
Frequently Asked Questions
Is a mesh upper suitable for safety shoes?
Yes, as part of a certified shoe. The upper material itself isn't separately certified, it's the complete shoe, toe cap, midsole, and other safety features, that must pass EN ISO 20345 testing. Mesh is commonly paired with overlays for reinforcement.
Is a mesh upper waterproof?
No. Mesh is not inherently waterproof, and a mesh-based shoe shouldn't be assumed water-resistant unless the label confirms a WRU or WPA marking. Some panels may carry a water-shedding coating, but that's not the same as a certified waterproof upper.
Is mesh less durable than leather?
Generally, mesh has lower abrasion and cut resistance than leather on its own, which is why it's often reinforced with overlays in high-wear areas like the toe and heel. Actual durability depends on the specific construction, not the material name alone.
Does a mesh upper affect certification?
Not directly. EN ISO 20345 certifies the whole shoe. Upper-specific properties like water resistance (WRU) and cut resistance (CR) are separate, optional markings that must be tested and confirmed individually.
How do I clean a mesh upper?
Brush off loose debris, wipe with a damp cloth and mild soap if needed, and let it air-dry naturally rather than using direct heat, which can damage the backing layer mesh is laminated to.
Is a mesh upper cut-resistant?
Not automatically. Cut resistance (CR) is a separately tested marking. Plain mesh generally offers less cut resistance than leather, which is why reinforced overlays are common in areas most exposed to sharp contact.
How long does a mesh upper last?
It varies with your role, environment, and care, so no fixed figure applies reliably. Watch for the wear signs covered above, and note that even unworn stock has a limited storage life, Xnexz's own technical file estimates around 3 years in appropriate conditions.
